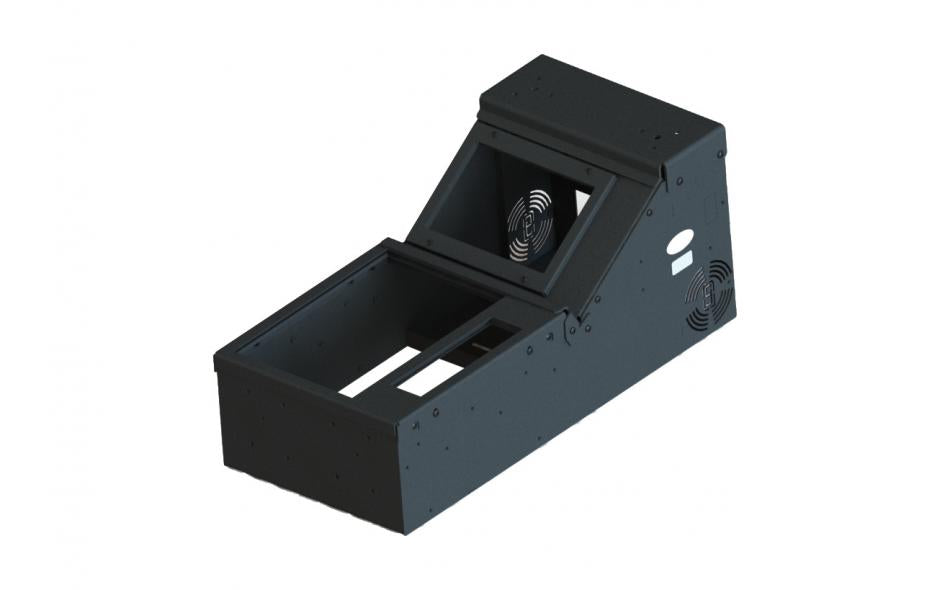

Wide Body Console Box

Horizontal, low profile section:

• Has a mounting area of 11.5" (29.2 cm) long to hold 11.5" of devices.
• Designed to house full-sized devices and accessories.
• Has additional side mounting area of 2" (5.1 cm) that will accommodate the 2-inch wide and 1.5-inch deep pocket (item no. 7160-0924), 2-inch faceplate for switches, power ports or a smaller device.

Vertical, angled sections:

• Accommodates 1 to 2 full-sized devices or faceplates (5” / 12.7 cm of mounting space)
• Two 12 volt plug knock-outs, located on top of the passenger side and 2 knockouts for switches, dual USB power ports, battery voltage display, data/mic jack or USB/AUX input module extension

Other features:

• Low profile, universal console with sloped front mounting area.
• Designed to work with top plate / tunnel plate and leg kits.
• Two 12 volt plug knock-outs, located on passenger side wall of console box and one knock-out for switches, dual USB power ports, battery. Voltage display, data / mic jack or USB / AUX input module extension
• PEM’s for mounting mic clip (item no.7120-0723) on both sides.
• Side vented openings for air flow or mounting a speaker inside the console box.
• PEM’s on back of console box for mounting an external cup holder (item no. 7160-0847) and armrest (item no. 7160-0429) or printer armrest (item no. 7160-0430).

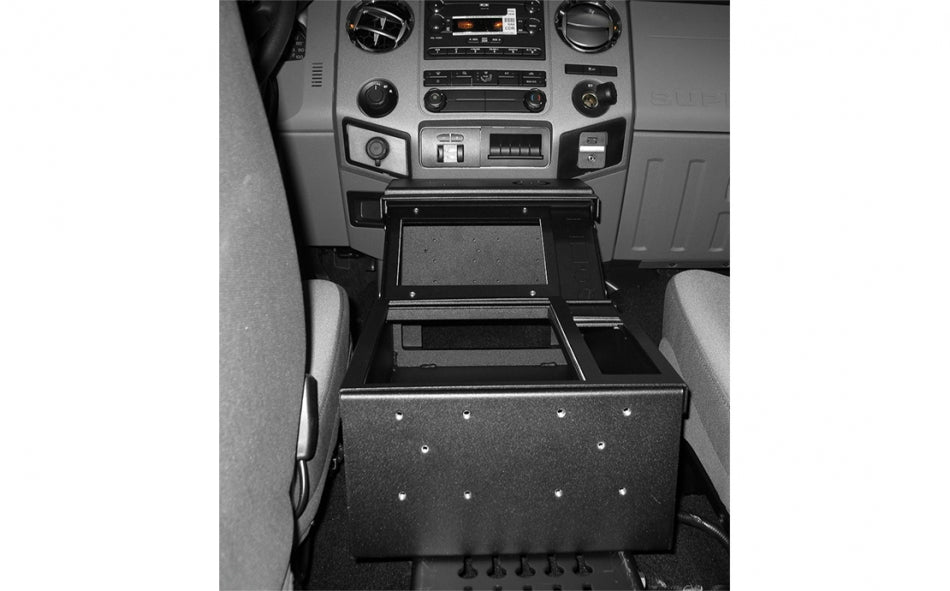

• Front plate of console (underneath dash area) has placement for a power distribution block or Lind shut‐down timer using pre‐configured mounted holes.

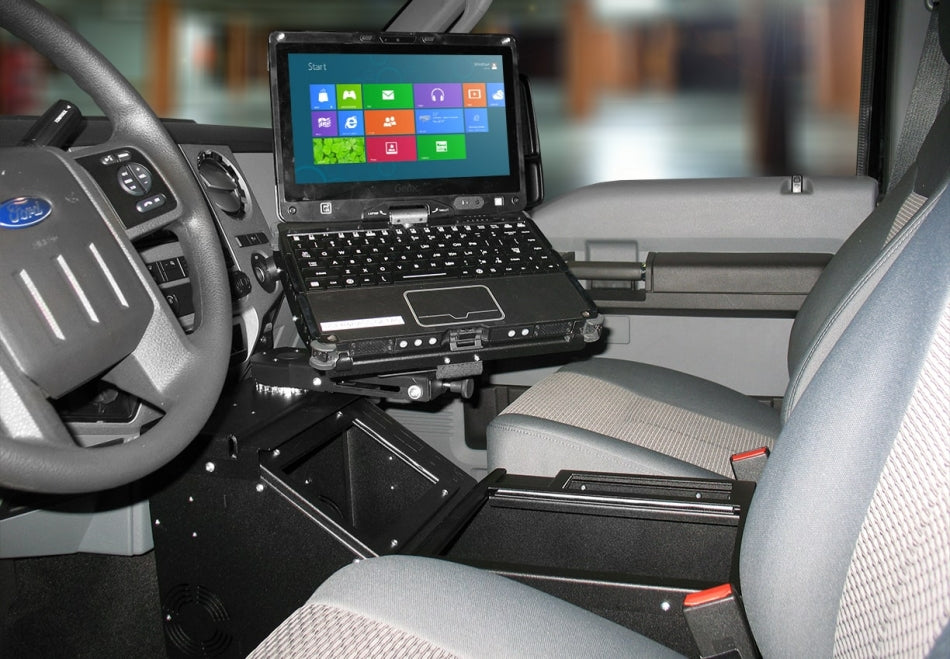

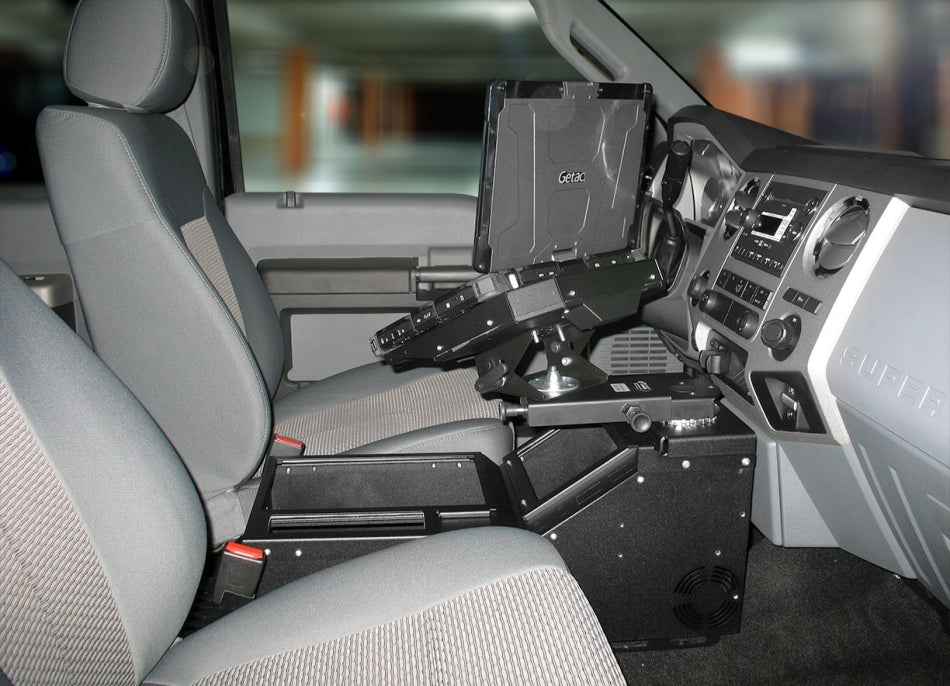

• Computer can be center mounted either off‐set towards the passenger on the “smiley face pattern” or on the 3‐bolt pattern closer to the driver for easy articulation access.
• Fully welded construction for long term product life span.
• Comes with 3 faceplates and 3 filler panels.
• Box ships fully assembled (except for accessories).

SPECS

• Height: 10.88" / 27.64 cm
• Width: 11.83" / 30.05 cm
• Depth: 24.75" / 62.87 cm

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
