25" Universal Console Box

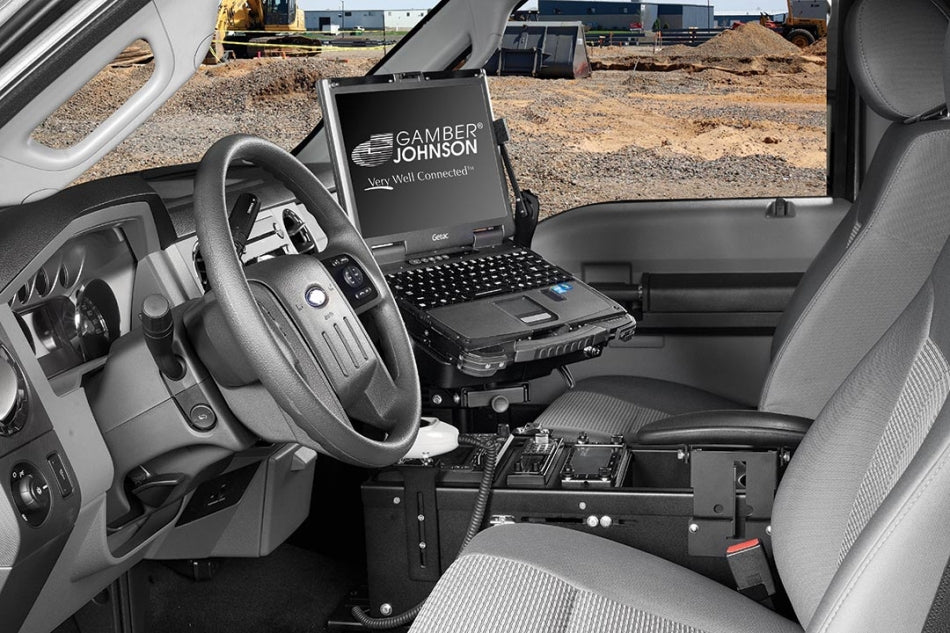

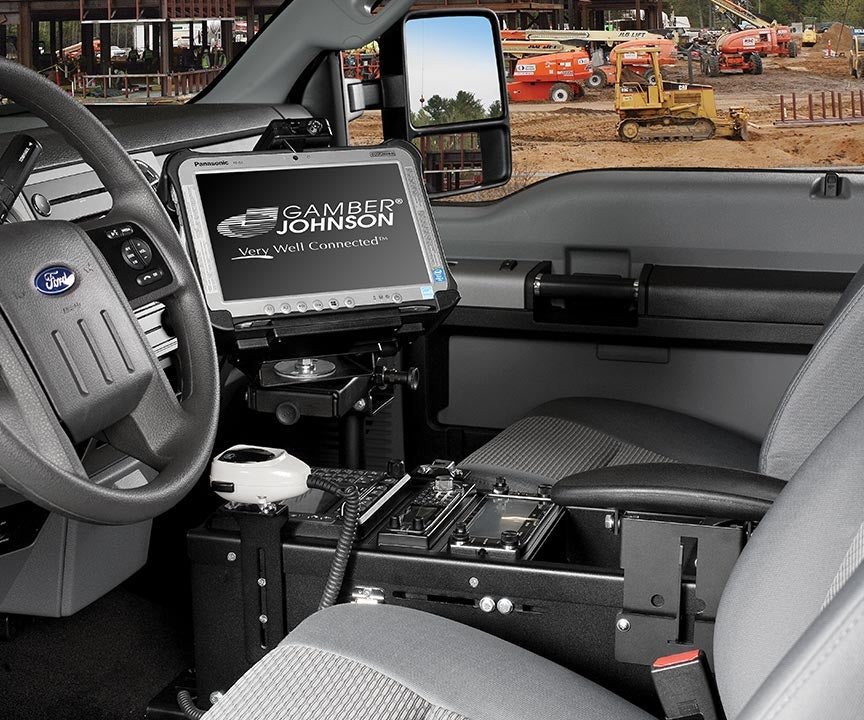

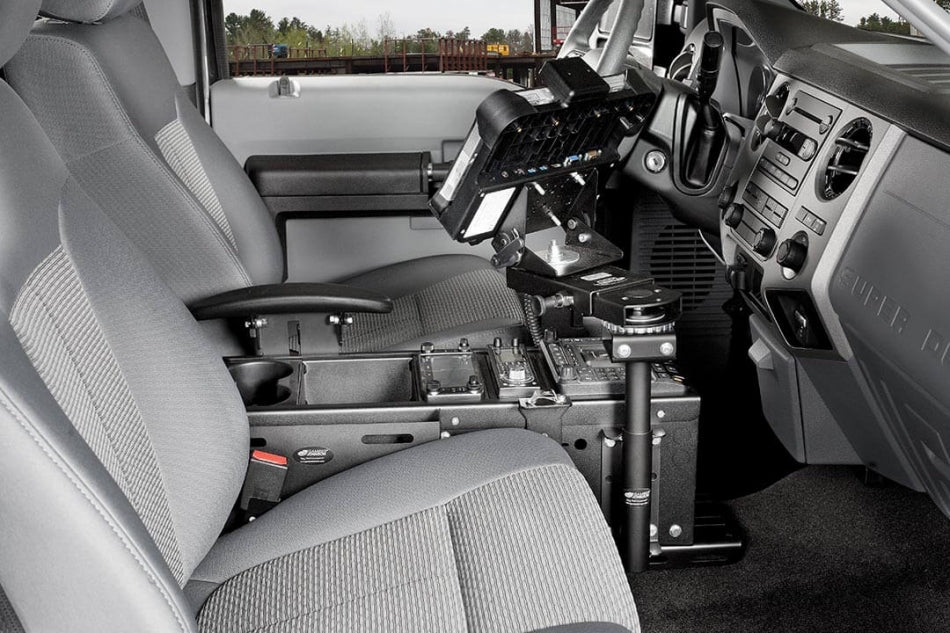

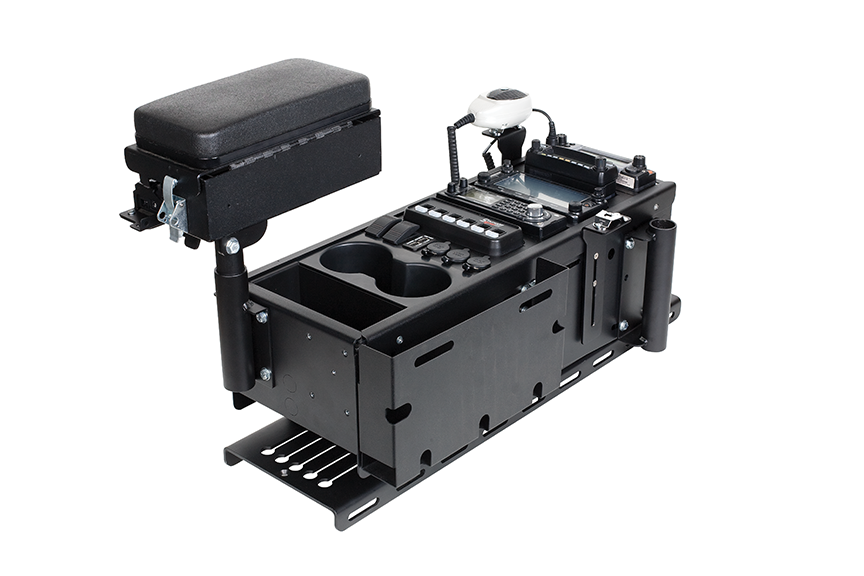

This box is big, sturdy, and completely adjustable to fit your vehicle. Take advantage of the spacious design by adding full size radios, light, and other electronics. Note: Items such as control heads, radios, docking stations, motion attachments, armrests, cupholders, computers, toggle switch plates, and locking pocket shown in photos are not included.
PLACEMENT
- On any MCS Top Plate (Item No. 7160-0086 or 7160-0085)
SEAT CONFIGURATION
- Bucket
DRILLING REQUIRED
- No
FEATURES
- 24.5" (62.2 cm) of straight mounting space plus 0.5" of overlap space to allow faceplates to fit flush
- Designed to house full sized devices and accessories
- Height adjustable with no side gaps in the console, ranges from 8.36" to 11.36" (21.2 cm - 28.9 cm)
- Angle adjustable at any height, ranges from 0° to 9°
- Adjustable support bracket in the center to strengthen the console box, along with fixed gussets in the bottom
- Can accommodate a power distribution block or Lind shut-down timer on the Front Plate
- Can accommodate most console box accessories including armrests, exterior cup holder, side pocket, DS-138, etc.
- For a list of armrests and accessories that work with this box click here
- Side pole mount (DS-138, sold separately) is angle adjustable to keep the pole vertical
- Rear armrest can be angle adjusted be using spacers on the bottom two bolts
- Three mounting locations on the side of the box for a mic clip or Adjustable Mic Clip (Item No. 7160-0826)
- Six 12V knockout panels for cigarette adapters
- Fully welded construction for long term product life span
- Box will ship fully assembled (except for accessories)
- 3 faceplates and 3 filler panels are included
- Height: 8.36" - 11.36" / 21.2 cm - 28.9 cm
- Width: 8.75" / 22.2 cm
- Length: 25.0" / 63.5 cm
WARRANTY: LIMITED LIFETIME
- A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
