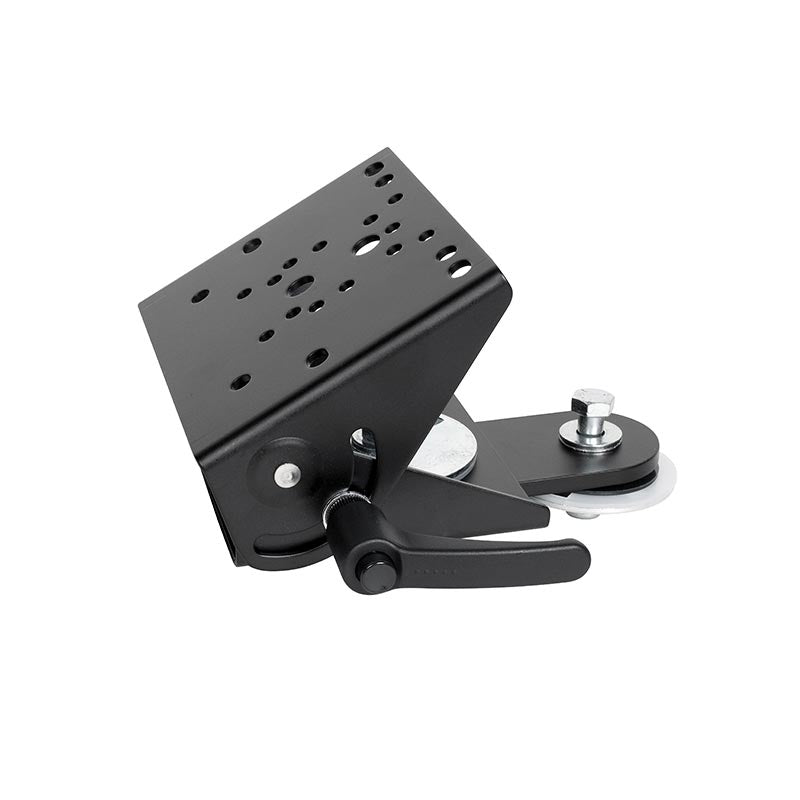

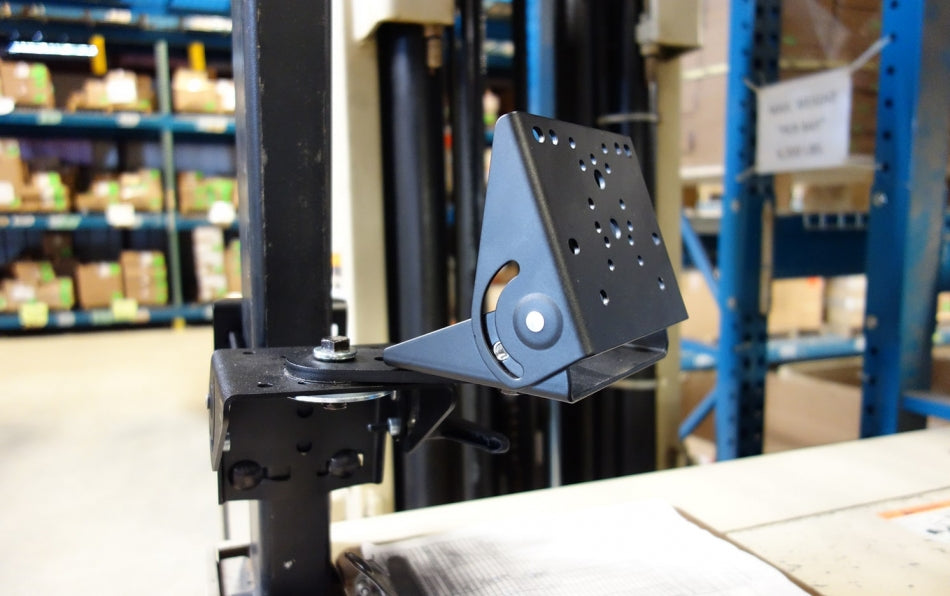

Clevis with Articulating Arm

• Attaches to any Clam Shell (7160-0357, 7160-0370, 7160-0371)

• Yes - up to 90° fore/26° aft

• Motion Attachment - 360° Entire arm - 360°

SPECS

• Height: 3.50 in / 8.9 cm
• Width: 8.18 in / 20.8 cm
• Depth: 6.63 in / 16.8 cm

• The entire arm can rotate around 360 degrees and the Motion
• Attachment can also rotate 360 degrees Arm extends 3” bringing equipment closer to the user
• Arm can be tighten down to be locked into a permanent position
• Clam shell features the following hole patterns: AMPS, NEC, 75mm VESA, Gamber-Johnson 2"x 4.09"
• Tilt capabilities:
  • 90° forward allows for tablets to be easily mounted
  • 26° aft movement with a positive stop at 26°
  • Riveted design allows for smoother tilt movement
• Can be mounted directly to any Clam Shell (7160-0357, 7160-0370, 7160-0371)
• Heavy gauge steel construction for long-term durability in a rugged environment
• Black powdercoat finish for maximum corrosion resistance

• A limited lifetime warranty is against manufacturer defects, not normal wear and tear.
